Solenoid Valve For Refrigeration Condensing Unit

FOB Reference Price:Get Latest Price
US $5-20 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
RESOUR
Model Number:
RS-C
Type:
Other
Application:
Refrigeration Parts
Certification:
CE
Special type:
Can be customized
Connector:
Screw or Welded
Structure:
Diaphragm
Material:
Brass
Testing before shipping:
Yes
Supply Ability
Supply Ability:
1000000000 Carton/Cartons per Week
Packaging & Delivery
Packaging Details
Carton cover with Single inner box
Port
Ningbo, Shanghai or appointed
Lead Time :
10-30 days

Solenoid Valve For Refrigeration Condensing Unit

Application:

1. Used into liquid line, suction line and steam line of refrigeration system to control the refrigerant to pass or not

2.Used in refrigeration compressor group, central air-conditioning, cold storage equipment

and bus air-conditioning system.



Operating principle:
While energized in coil, the electromagnetic power opens the small orifice. Then the pressure in upside of valve reduced, so the pressure difference between both side of diaphragm happen and lead to diaphragm lift to open the main orifice. While de-energized in the coil, plug stem will drop and close the small orifice because of spring force and its weight. The flow media enters into upside of diaphragm through throttle hole, then pressure in both side of diaphragm balances, then the diaphragm will drop and close the main orifice.



Technical data

1.Ambient temperature: -20 ~ 50 .C
2.Medium temperature: -25 ~ 120 .C
3.Max. working pressure: 3 MPa
4.Available medium: R134a,R22,R407C,R404A/507,air,water and oil.
5.Optional voltage of solenoid coils:
6.A.C.: 24V,36V,110V,220V,380V.
7.D.C.:12V,24V,110V,220V

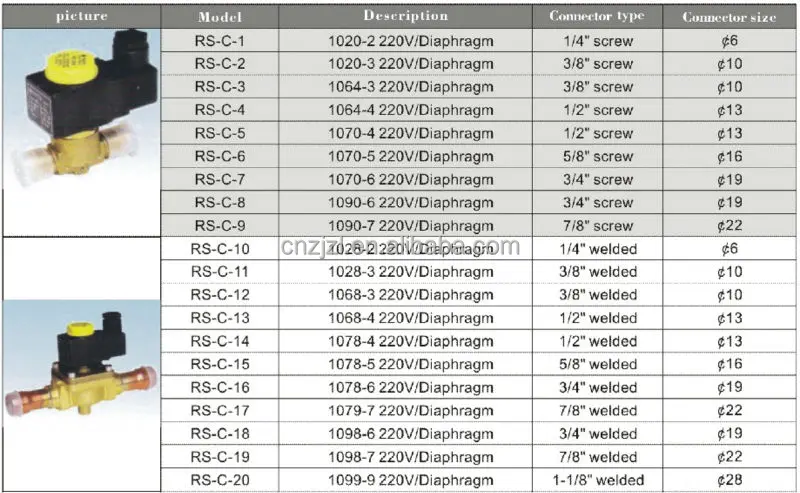

Ordering number:

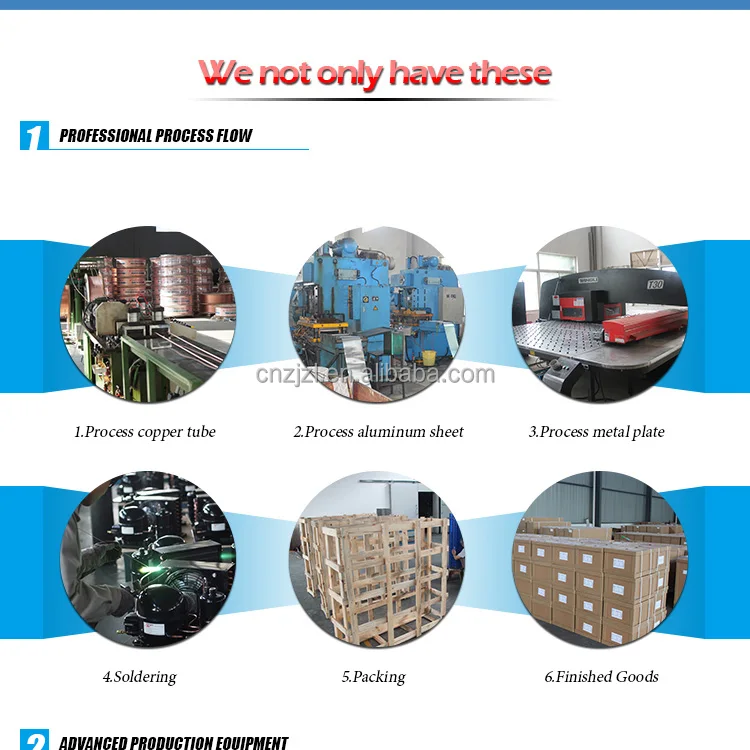

About our Factory

Please contact us for more details or models.
