Quick Details

  • Standard or Nonstandard: Standard
  • Structure: Shutoff
  • Pressure: Medium Pressure
  • Power: Manual
  • Material: Brass, Brass
  • Temperature of Media: Normal Temperature
  • Media: Water
  • Port Size: 1/8" 1/4" 3/8" 1/2"
  • Place of Origin: Zhejiang, China (Mainland)
  • Model Number: MV
  • Brand Name: RESOUR
  • Application: General
  • Special type: Can be customized
  • Connector: Screw or Welded
  • Testing before shipping: Yes
  • Certification: CE
  • Condition: New
  • Operating Voltage: 230 VAC

Packaging & Delivery

Packaging Details Carton cover with Single inner box
Delivery Time 10-30 days

Stainless Steel Motorized Valve, 3-way valve for Refrigerator



Application:

1. Used into liquid line, suction line and steam line of refrigeration system to control the refrigerant to pass or not

2.Used in refrigeration compressor group, central air-conditioning, cold storage equipment

and bus air-conditioning system.



Operating principle:

The Valve is closed,configurations of valve body are closed off;the thermostat (NTC) transfers a signal to actuator that will connect to power,and then open valve,input hot water or freezed water to fan coil unit;if the room temperature reaches to set-point,thermostat transfers a signal to actuator to cut off the power,and spring switch returns,valve is closed,and the hot or freezed water is block to fan coil unit.Therefore,the room temperature could be controlled in the set-point through valve opened or closed.



Technical data

1.Operating Voltage:220-240VAC50/60Hz
2.Rated Power:5W
3.Motor:magnetic hysteresis synchronous motor 5RPM
4.Norminal Pressure:1.6Mpa
5.Close-off Pressure:0.3Mpa
6.Applied Media:chilled water,hot water,low-pressure steam
7.Stroke Range:3mm-5mm
8.Full stroke time "on":approx.10s
9.Full stroke time "off":approx.5s

10.Suitable Media Temperature:1oC-95oC

11.Control Signal:On/off,2 position,spring return



Material

Actuator

Stainless steel plate,Aluminum cover

Valve Body

Forged Brass

Stem

Brass/Stainless steel

Seat

Brass

Paddle

Nitrile-butadiene rubber(NBR)

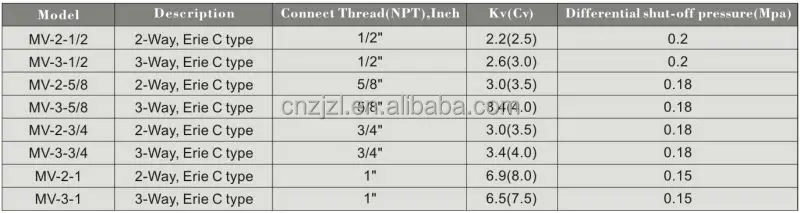

Ordering number:



About our Factory

Please contact us for more details or models.
